Friday, February 6, 2009

Create Your Own Digital Photo Overlay

Ok, with the popularity of Project 365, I've seen date/day of the week digital journaling overlays popping up everywhere. But I haven't necessarily found any I love, and I like to have lots of different ones so I'm not using the same ones over and over again. Well, it turns out they are pretty easy to create.

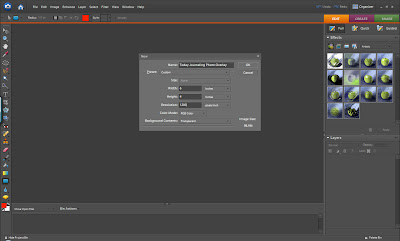

Step 1 - Create a New File. Go to FILE -> NEW -> BLANK FILE.
In the dialog box do the following:

- name your file (optional)
- set the width to 6 inches
- set the height to 4 inches
- set the resolution to 1200 pixels per inch
- set the background contents to tranparent
These settings will allow you to resize the overlay you are creating, up to 12x12 inches, with adequate resolution for photo quality printing.

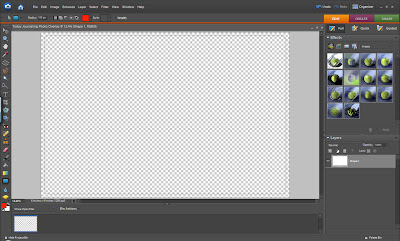

Step 2 - Draw Your Overlay. Click on the SHAPE TOOL (see photo below) and select the ROUNDED RECTANGLE TOOL. In the tool options at the top of your screen, select a radius for your rounded corners, I am using 100 pixels.

In the tool options at the top of your screen, select STYLE and then click on the arrows at the top right hand corner of the dialog box. From the drop down list choose VISIBILITY and then select HIDE from the dialog box. This option will allow us to create an outline of a rounded rectangle instead of a filled in rectangle.
Drag your rounded rectangle to a size slightly smaller than your background. Don't worry about the color of the rectangle yet. Next, press and hold CONTROL and click on the layer containing your shape in the Layers Palette (bottom right hand corner of screen). This will select the objects in that layer.
Now, while your shape is selected, create a new layer by clicking on LAYER -> NEW -> LAYER. Name the new layer if you want and then click OK in the dialog box. The first layer holds a hidden image of your shape. We will actually be creating your shape in this new layer.
Your shape should still be selected. Choose EDIT -> STROKE (OUTLINE SELECTION).
In the dialog box select the width and color of your shape outline. If you want to be able to use this overlay in color, select any color other than black and white. The exact color can always be varied later using the hue/saturation/lightness variables. Just make sure to note the color and width you are using so that you can use a consistent color and width for all parts of your overlay (if desired). Click OK when you are done. If you don't like the width you picked you can undo and then redo the STROKE command. Once you are happy with the way your outline looks click on SELECT -> DESELECT to deselect your outline.
Delete the original layer which holds the hidden image of your shape.

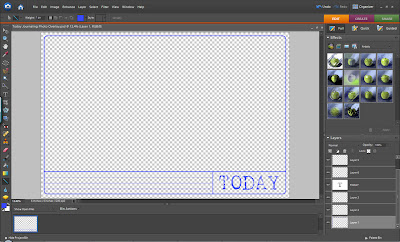

Repeat the steps above using other shapes and text as desired. You do not need to create a hidden image or use the STROKE command on text. Those steps are only necessary when you want to create an outline of a shape.
Once your are happy with the overlay, SAVE your overlay as a PSD file so you can come back and modify it in the future if you want. Once your overlay is saved merge all of the layers into one by clicking LAYER -> MERGE VISIBLE. Save the resulting overlay as a PNG file by clicking FILE -> SAVE AS and the selecting PNG under format.

Your resulting PNG file can be used as any other PNG file. I describe some of the things you can do with PNG files in Digital Embellishment Basics.

Here's what my overlay looks like recolored and on a photo.
Keep in mind that I like to create high resolution overlays so that I can use them on photos/layouts up to 12x12 inches in size. So, you may need to reduce the resolution of the overlay before you move it onto a 4x6 photo, or else you probably won't even see it because it will be so much larger than the photo.


Happy overlay making!
